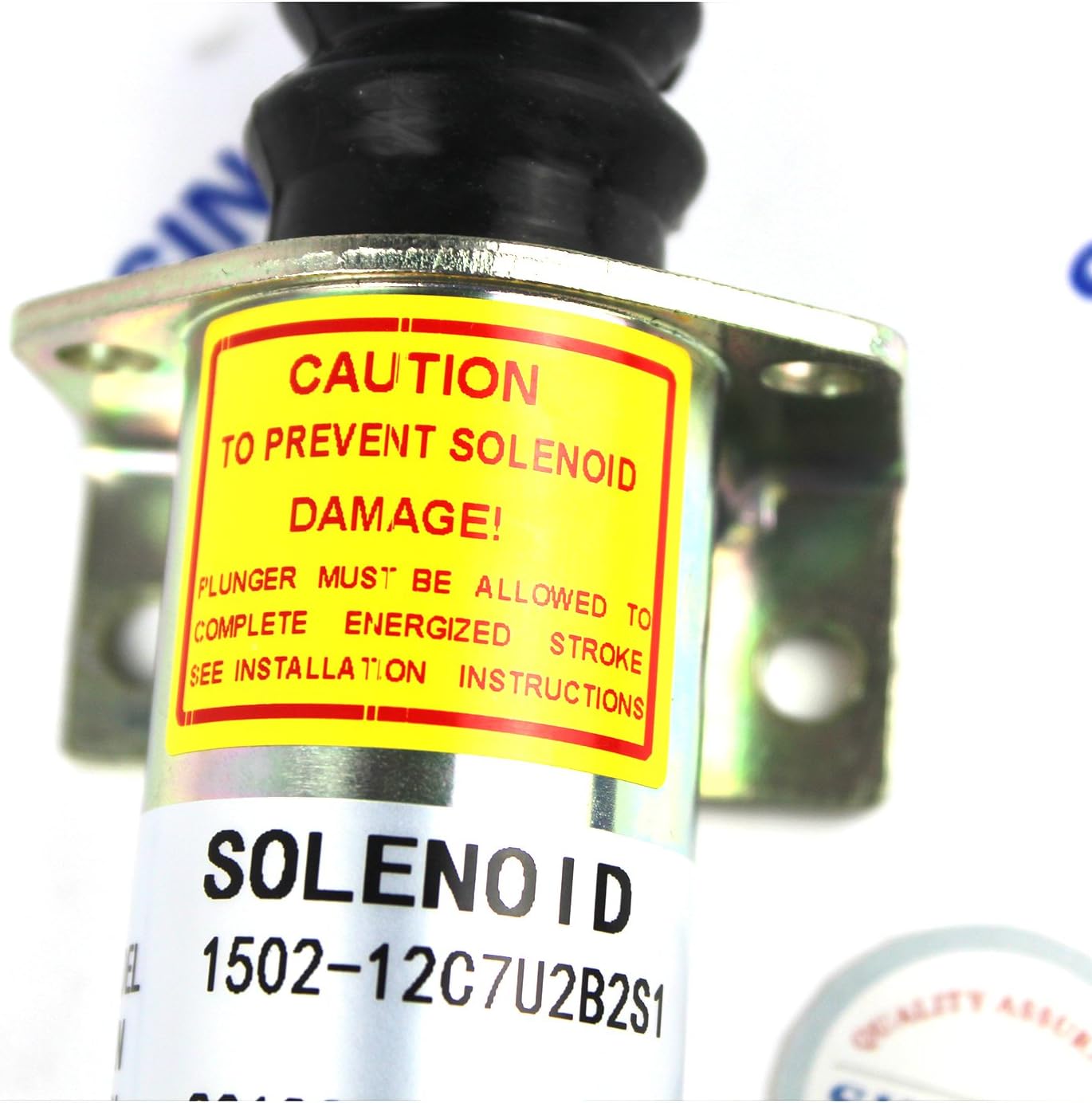

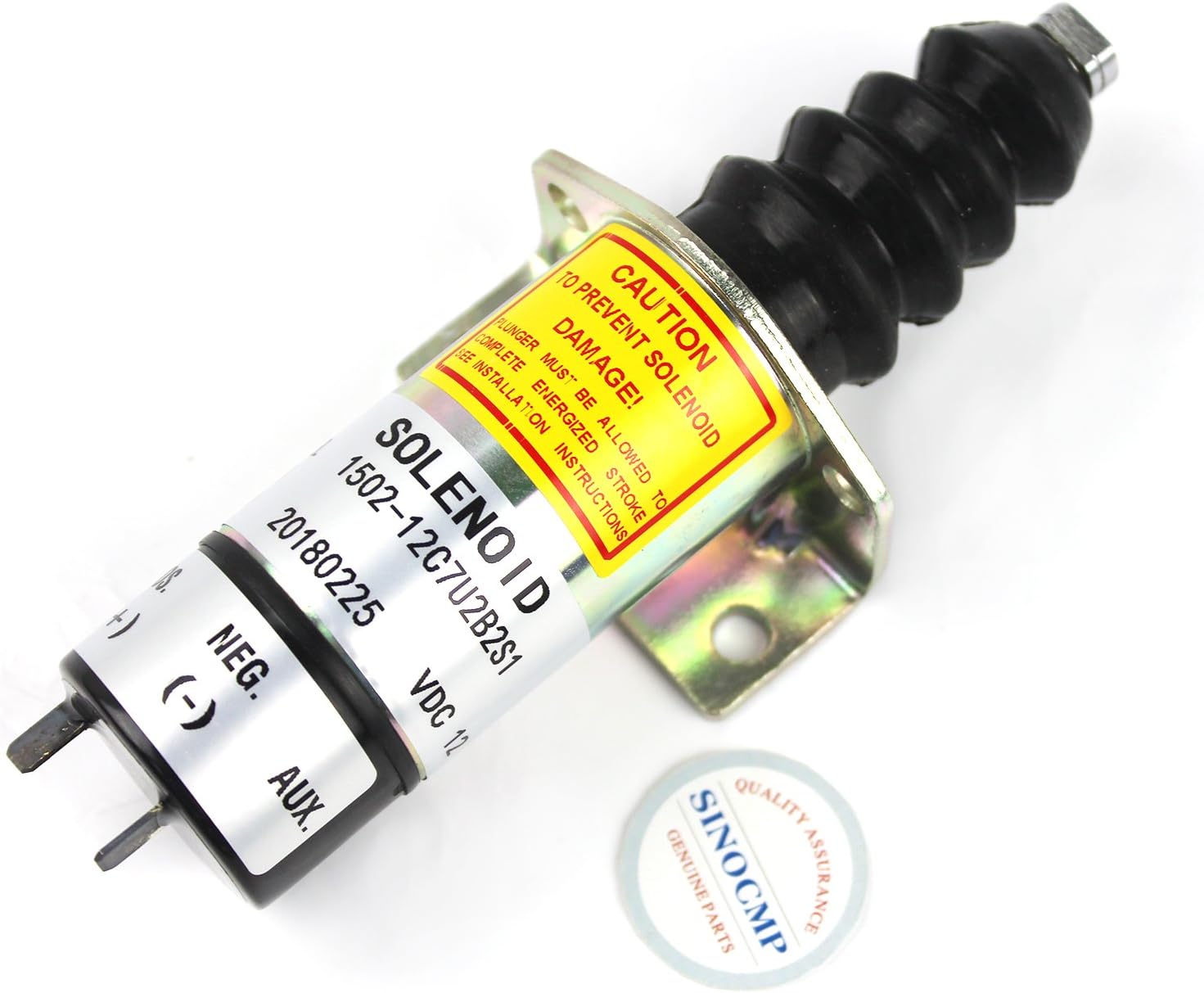

SA-3405T 366-07197 1502-12C7U2B2S1 12V Fuel Shut Off Stop Solenoid Valve with Bracket 2 Pins for LPWS LPWT Excavator Electric Parts
Product details
| Management number | 229594906 | Release Date | 2026/05/31 | List Price | US$11.28 | Model Number | 229594906 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Reliable Fuel Shutdown for Diesel EnginesThe 366-07197 = SA-3405T 12V fuel shut off stop solenoid is designed for LPWS, LPWT excavators and Deutz industrial engines. This 1502-12C7U2B2S1 solenoid valve cuts fuel flow when power is removed, preventing engine overrun in construction, agricultural, and generator applications.Specifications- Voltage: 12V DC- Terminal type: 2 pins (pull + hold)- Mounting: With bracket included- Coil insulation class: Class H (180°C / 356°F)- Plunger stroke: 12mm ± 1mm- Body material: Painted steel with copper winding- Bracket hole spacing: 52mm center to center- Sealing: Rubber boot on rear switch areaCross Reference Part NumbersThis 12V fuel shut off solenoid replaces:366-07197, 36607197, SA-3405-T, SA3405T, SA-2944-T, SA-4849-12,1502-12C6U1B2S1A, 1502-12C6U1B1S1, 1502-12C7U2B2S1, 1502-12C7U1B2S1, 150212C7U2B2S1Compatible Engine Models- Lister Petter: LPW, LPWS, LPWT- Deutz: F3L, F3M, F4L, F4M1011 (2011 series)- Perkins diesel engines (selected models)- Bobcat / Woodward industrial enginesInstallation Instructions1. Disconnect battery negative cable before working on 366-07197 solenoid.2. Remove old SA-3405T fuel shut off solenoid from engine bracket.3. Clean mounting surface on LPWS engine block.4. Mount new 1502-12C7U2B2S1 stop solenoid using existing bolts (torque 15-18 Nm).5. Connect 2-pin harness to SA-3405T 12V solenoid observing polarity.6. Turn ignition on and off to verify plunger clicks on 366-07197 unit.Important Precautions- Do not apply continuous power to pull coil without hold coil engaged on this 12V fuel shut off solenoid.- The internally switched SA-3405T solenoid is not rated for high-vibration applications with constant cycling.- Never hammer or modify plunger on 1502-12C6U1B2S1A stop solenoid.- If 366-07197 solenoid fails to retract, check for voltage drop below 10V at connector.- Store spare LPWS fuel shut off solenoid in dry area; avoid dropping coil assembly.
- [🌟] Direct Engine Shutoff – 366-07197 fuel shut off solenoid cuts diesel supply instantly when ignition turns off. Works on LPWS excavators or Deutz F3L generators where safe engine stop prevents runaway in dusty construction sites.
- [🌟] High-Temp Copper Coil – SA-3405T stop solenoid uses 180°C-rated copper winding wire for reliable pull-in force. This 12V fuel shut off solenoid withstands engine bay heat on LPWT skid steers and F4M1011 industrial engines.
- [🌟] Strong Return Spring – 1502-12C7U2B2S1 solenoid valve includes reinforced spring for positive plunger retraction. Each 366-07197 fuel shut off solenoid returns to run position without sticking after 5000+ cycles on excavation equipment.
- [📦] Multi-Engine Compatibility – SA-3405T 12V solenoid fits for Deutz F3L/F3M/F4L/F4M1011 2011, Lister Petter LPW/LPWS/LPWT, Perkins, and Bobcat engines. This 1502-12C6U1B2S1A stop solenoid replaces 36607197 and SA3405T with identical bracket spacing.
- [⚠️] Match Part Numbers First – Compare old 366-07197 solenoid flange and plunger length before ordering. This SA-3405T fuel shut off solenoid requires 12V DC and 2-pin connector; verify 1502-12C7U2B2S1 matches your LPWS engine harness.
| ASIN | B07BS8Z4D5 |
|---|---|
| Size | 1x3x1 inches |
| Brand Name | SINOCMP |
| Unit Count | 1 Count |
| Valve Type | solenoid valve |
| Thread Size | 1.2 inches |
| Thread Type | NPT |
| Manufacturer | SINOCMP |
| Model Number | 1502-12C7U2B2S1 SA-3405-T |
| Material Type | Metal |
| Connector Type | Threaded |
| Exterior Finish | Stainless Steel |
| Item Dimensions | 3.1 x 1.2 x 1 inches |
| Number of Ports | 2 |
| Inlet Connection Type | Threaded |
| Outlet Connection Size | 1.2 Inches |
| Outlet Connection Type | NPT |
| Manufacturer Part Number | 1502-12C7U2B2S1 SA-3405-T |
| Manufacturer Warranty Description | Manufacturer warranty for 3 month from date of purchase |
