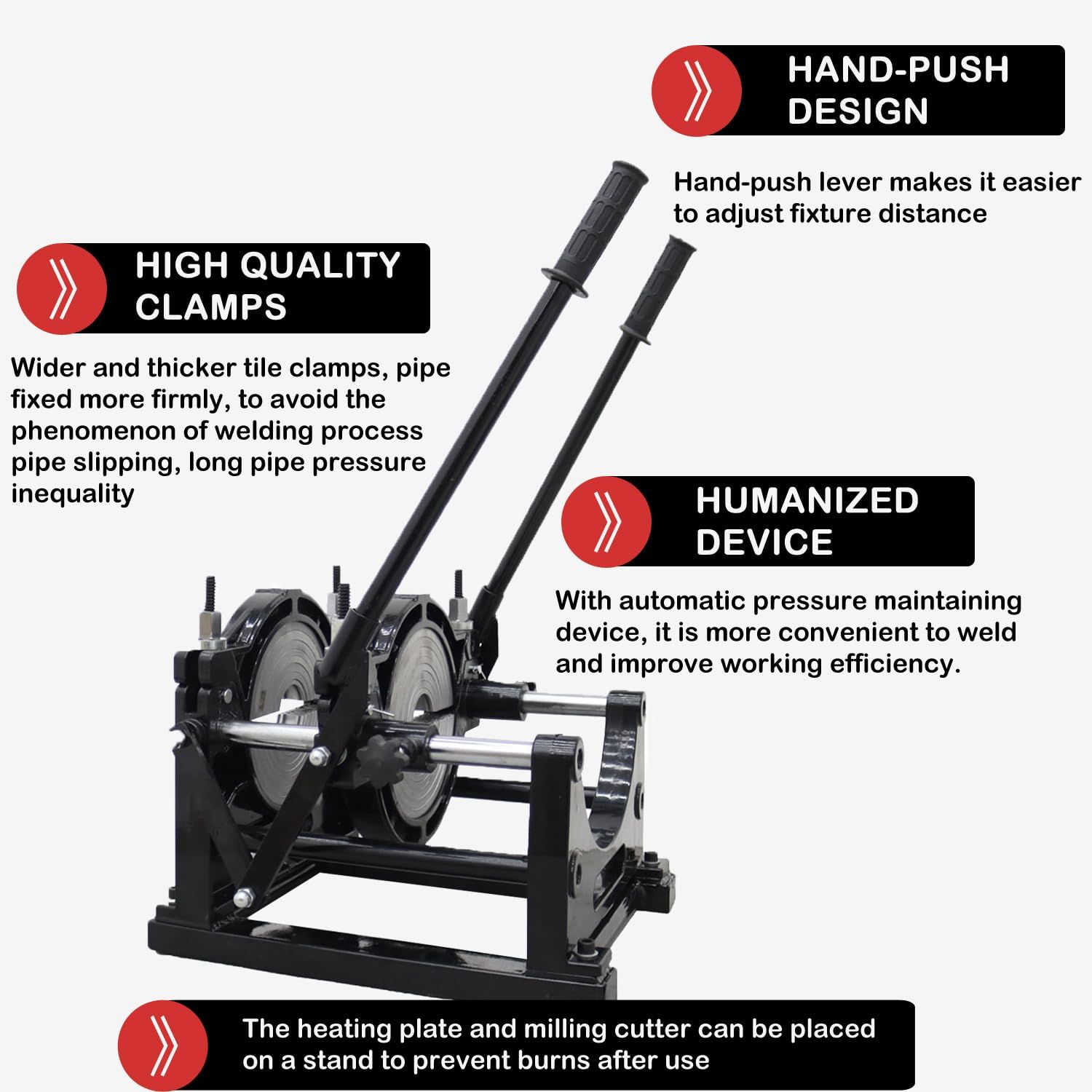

DOPHEN 2.48-7.87” Hand-Push Pipe Welder PE PPR PB PVDF HDPE Fusion Welding Machine

Specifications: Model No. 2.48-7.87”(63-200MM) four rings manual Materials Aluminum alloy casting, 45# steel Welding level(Φ, mm) Outer dia 63mm(2.48”)、75mm(2.48”)、90 mm (3.54”)、110 mm (4.33”)、125 mm (4.92”)、140 mm (5.51”)、160 mm (6.30”)、180 mm (7.09”)、200mm(7.87”) Docking deviation ≤0.3mm Power of Heater 2.5KW/110V Power of Milling Cutter 1.1KW/110V Working temperature 300°c Temperature deviation ±5°c Environment temperature -5……40°c Time required to reach soldering temperature <20min Materials can be welded PE PP PB PVDFWeight 105LB(48kg) Package Size 24*17*17"(61*44*43cm) Item Included(145013) 1×machine

• 【Scope of Application】The welder is suitable for PE PP PB PVDF plastic pipe hot-melt butt welding. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory.
• 【Stronger Welding】Upgraded high-hardness milling cutter, sharp and wear-resistant, clean and parallel cutting surfaces, and stronger welding.The use of high quality Aluminum casting alloys for lower weight without compromising strength and performance.
• 【Fast Heating Speed】Thick high-quality layer paint, uniform heat conduction, rapid heating of the tube, high work efficiency.
• 【Adjustable Temperature】Accurate scale temperature adjustment 0-300℃ Manual adjustment and lasting constant temperature.
• 【Parameter】Welding level(Φ, mm)；Outer dia:63mm(2.48”)、75mm(2.95”)、90 mm (3.54”)、110 mm (4.33”)、125 mm (4.92”)、140 mm (5.51”)、160 mm (6.30”)、180 mm (7.09”)、200mm(7.87”)
